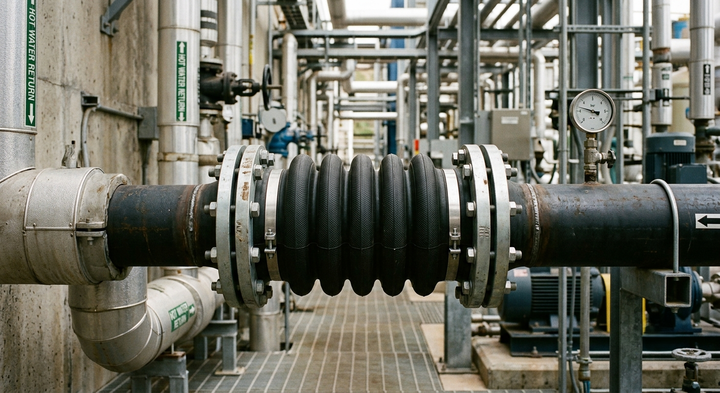

Industrial pipe systems are continually subjected to pressure changes, vibration, temperature fluctuations, and equipment movement. Without adequate flexibility, these forces can cause pipe breakage, leaks, and costly repairs. rubber expansion bellows are especially useful in this situation. They absorb movement, dampen vibration, correct for thermal expansion, and shield pumps, valves, and pipelines from undue stress.

However, even the best expansion bellows will not operate well if they are fitted wrongly. Proper installation is equally crucial as selecting the right product. Businesses that follow the proper procedures can increase system reliability, lower maintenance costs, and extend the service life of both the bellows and the linked equipment.

Why Does Proper Installation Matter?

Many plumbing problems are caused by faulty installation, rather than poor-quality components. Improper alignment, excessive compression, or insufficient support can put undue strain on rubber expansion bellows, diminishing their flexibility and resulting in premature failure.

Correct installation ensures that the bellows serve their intended purpose while safeguarding the entire piping system from mechanical stress and vibration.

Select the Right Rubber Expansion Bellows

Before installation begins, it is critical to select the appropriate expansion bellows for the application. Operating circumstances vary among industrial environments, including pressure ratings, temperatures, chemical exposure, and movement requirements.

When choosing rubber expansion bellows, consider:

Choosing the proper product from the start prevents future operating concerns.

Inspect the Bellows Before Installation

Always check the bellows before installing them. Even during shipment or storage, components may be damaged, affecting performance.

Look for:

Never install broken bellows, as even minor flaws might cause serious issues under operational pressure.

Ensure Proper Pipeline Alignment

Proper pipe alignment is among the most crucial installation practices. rubber expansion bellows are intended to absorb movement during system operation, not to repair installation problems.

Misaligned pipes put constant stress on the bellows, shortening their life and increasing the likelihood of failure.

Before you tighten the flanges:

Proper alignment permits the bellows to function as intended.

Avoid Excessive Compression and Extension

Each expansion bellows has a specific movement range. Installing it in an already compressed or stretched state reduces its ability to absorb movement during operation.

Instead:

Maintaining the optimum posture increases flexibility and service life.

Use the Proper Pipe Supports and Anchors

Expansion bellows should never support the weight of the pipe system. Proper pipe supports and anchors are required to restrict movement and save excessive stress.

A well-supported system contributes:

Anchors should be positioned in accordance with the piping design to ensure that movement happens as intended.

Tighten Bolts Evenly

Improper bolt tightening can result in flange leaks and unequal pressure on the bellows.

For optimal results:

Even pressure across the flange ensures a solid seal while protecting the rubber material.

Prevent Twisting During Installation

Twisting is one of the leading reasons of premature bellows failure.

During the installation:

Maintaining the original shape preserves flexibility and protects against interior damage.

Protect Against Excessive Pressure

Every rubber expansion bellows is intended to work within particular pressure ranges. Sudden pressure surges and water hammer can substantially shorten service life.

Install pressure control devices such as:

These can help to reduce pressure spikes and protect the bellows.

Allow for Thermal Movement

Temperature fluctuations cause pipes to expand and compress. Expansion bellows are specifically intended to absorb this movement.

Make sure there is enough installation space for the bellows to move freely without colliding with any neighboring structures or equipment.

Restricted movement reduces performance and adds stress to the entire pipe system.

Perform Regular Inspections After Installation

Installation is just the beginning. Routine inspections can discover minor issues before they become costly failures.

Regularly check for:

Preventive maintenance promotes safe and efficient operation.

Train the Installation Teams

Even high-quality Rubber Expansion Bellows can fail if the installers are unfamiliar with correct handling techniques.

Training ensures that technicians understand:

Well-trained people help to improve system performance and extend equipment life.
